Setting up your TTLock application and configuring your Smart Door Lock for the first time

The TTLock App is the smart application used to program most of our Smart Door Locks. This application can be used for everything from locking and unlocking your lock to creating passcodes and adding fingerprints and fobs to setting up passage mode or adding a wifi bridge for remote access (optional).

Following is a step by step guide on how to set up a TTLock account and add a new lock to the TTLock application.

1. Download the App

Click here to open the application on an Apple device.

Click here to open the application on an Android device.

2. Login to TTLock Account

Important:

Enable Bluetooth on your smart phone before continuing.
All the operations related to configuring the new smart lock should be performed within one meter radius to the lock.

If this is your first time using the TTLock app, you have to register a new user account. Once an account has been created, you can use the same account to manage all of your locks.

If you already have an account you can skip the registration and login to the application with your account credentials.

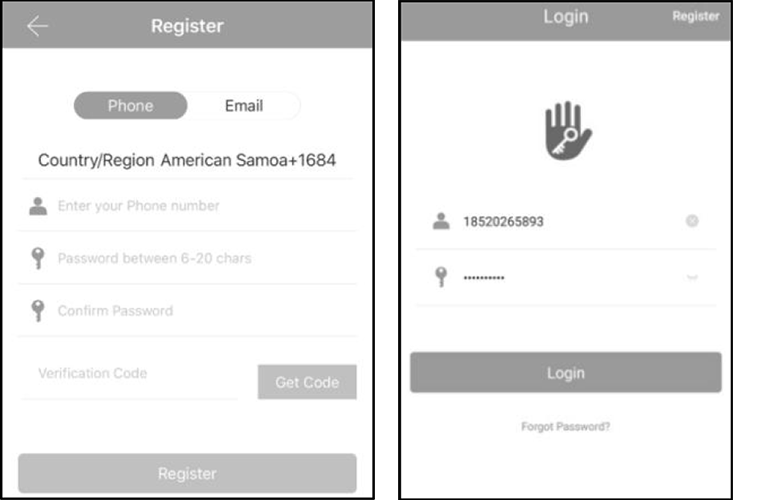

Registering a new account

Login to the account

1.1 Open the TTLock application

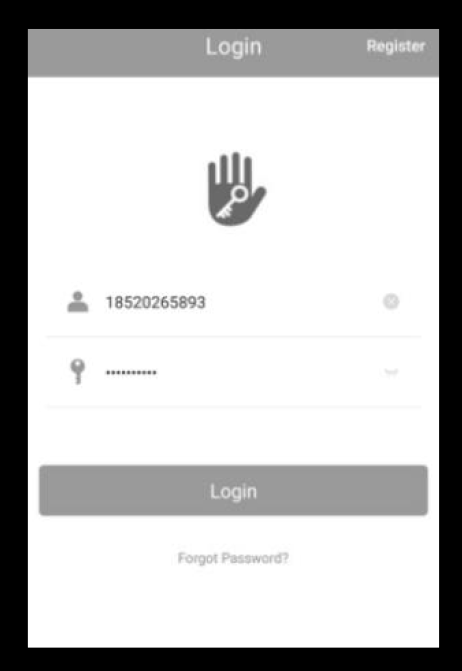

1.3 Login to your account with your username and password

1.2 Follow the prompts to register a new account

Login successful

Once you are logged into the application you will be taken to the home page of the TTLock application.

3. Adding the Lock to the TTLock App

Important:

The default password is 123456.
Once you complete this step, you will become the Bluetooth administrator of the lock. There can be only one Bluetooth administrator for a given lock.
You can add more users with administrator privileges but the Bluetooth administrator has the highest permission level.
To remove a Bluetooth Administrator, go to the 'Factory Reset' in your user manual and follow the steps to reset the lock to the factory default.

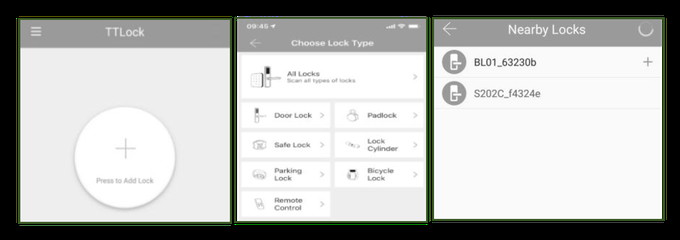

1.4 Tap the ‘Press to Add Lock’ button.

1.5 Tap the ‘All Locks’ button.

Important:

Make sure the smart lock is active (or keypad is illuminated). If not, touch or slide your finger over the keypad until the keypad is illuminated.

1.6 Now the application will scan for nearby locks and once and lock is found, tap the ‘+’ button next to the correct lock.

1.7 Enter a lock name. E.g. Front door, Room 1

1.8 If successful, you will be taken to the home page of the new lock. Now the lock is added to your account and ready to be configured.

Locks this guide applies to

These setup steps apply to every SDL and Loqee lock that uses the TTLock app:

To control your lock when you're away from home, you'll also need a Wi-Fi Gateway. Bluetooth alone only works within range of the lock.

Next Steps

Creating new users for your Smart Door Lock
